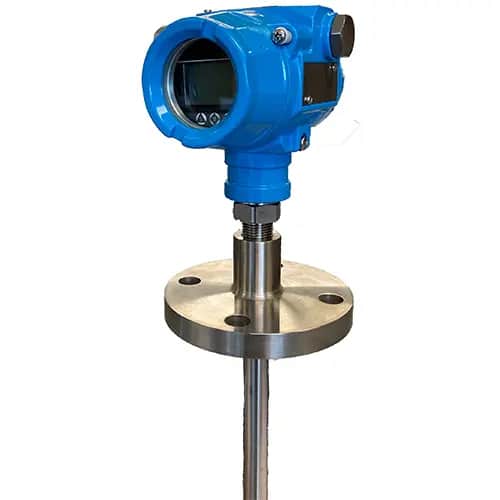

WINSMART™ TY52 SMART EXPLOSION PROOF TEMPERATURE TRANSMITTER
APPLICATIONS:
TY52 can be utilized and installed anywhere where temperature measurement is required. From Oil & Gas installations to Power Generation, this product has a rugged design and is equipped with the communication protocols to meet all your day to day requirements
DESCRIPTION & FEATURES:
Integrated temperature transmitter with ASIC signaling transmitter
Explosion proof smart temperature transmitter for hazardous locations
-50 to 400°C (-58/752°F ) measure range
0.5% accuracy
Simple to operate 3-push button control
HART® or Modbus communications available
Low power option available
Re-zero function for safe field calibration
10:1 rangeability allows for installation in any application
5 year warranty
Additional information
| Output Signal | 4/20 mA, 2-wire / V = 10-30 Vdc |
|---|---|
| Sensor Type | PT100 RTD |
| Measuring Range | -50 to 400°C (-58/752°F ) |
| LCD Display | LCD display (standard) or without LCD display (optional) |
| Accuracy | 0.5% accuracy |
| Stability | 0.05% or 0.1°C / year |
| Temperature Range | Working: -40/85°C (with display -20/70°C), -40/185°F (without display -4/158°F) |
| Working Humidity | 0-95% |
| Pressure Connection | 1/2” NPTM, 1/2 GM or Flanged |
| Housing | Rugged die-cast aluminum housing, painted blue |
| Wetted Parts | 316 SS, 304 SS |
| Power Consumption | </- 500 mW @ 24 VDC, 20.8 mA |
| Vibration | 4g, 2…100Hz |
| Available Temperature Units | Celsius (oC), Fahrenheit (oF) |
| Approvals | Intertek, for USA & Canada |
| Protection Class | IP67 |
